This commercial sparkling water dispenser features a 4-in-1 system (hot, chilled, sparkling, and ambient water), customizable 2-in-1 or 3-in-1 configurations, designed to meet diverse high-demand commercial needs. With high output capacity and advanced gas-liquid fusion technology, it delivers consistent performance and premium sparkling taste. Equipped with intelligent controls, UV sterilization, and energy-saving systems, it ensures safe, hygienic, and cost-efficient operation, making it an ideal solution for modern commercial environments. Optional RO filtration available. Click to see more detail product ranges.
| Model No. | G1DS-1023 / G1DS-123 |
| Style | 4 in 1 |
| Function | 4 in 1 (Chilled/Sparkling/Hot/Ambient Water) |

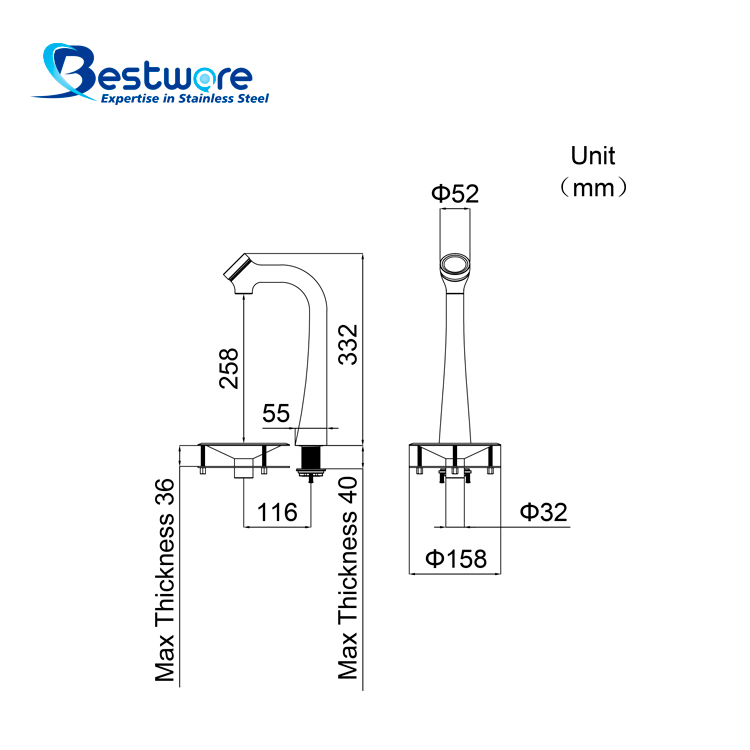

| Tap Size (Tap+Drip Tray) (W x D x H) | 158x223x332 mm |
| Tap Body Material | SUS304 plasma mirror polishing (unplated) |
| Tap Animated Display Screen | 1.5-inch OLED intelligent control, high-definition display rotary knob |
| Tap Communication Interface | Shares with chilling unit and heating unit |
| Chilling Unit Machine Size | 355x464x438 mm |
| Chilling Power Rating | 520 W |
| Chilling Unit Supply Voltage | 110 V/60Hz or 220 V/50Hz |
| Chilling Unit Water Pressure Range | 0.15 MPa~0.6 MPa |
| Chilling Capacity | 40 L/h, ＝ 200 cups/h (200 ml/cup) |
| Chilling Unit Adjustable Temperature Range | 0℃~8℃ |
| Chilling Unit Inlet/Outlet Water Pipe Connection | ¼" PE |
| Chilling Unit Communication Interface | Shares with heating unit and faucet |
| Chilling Unit UV Sterilization | External |
| Sparkling Capacity | Max 3 L/min |
| Sparkling Water Concentration | 2.5~3.5 g/L |
| Chilling Unit CO2 Cylinder | Customer's Replacement |
| Chilling Unit CO2 Operating Pressure | 0.35-0.4 MPa (Under 0.1 MPa With Audible Feedback) |
| Chilling Unit CO2 Intake Pipe | ¼" PE |
| Heating Unit Machine Size | 230x322x438 mm |
| Heating Unit Supply Voltage | 110 V/60 Hz or 220 V/50 Hz |
| Heating Unit Water Pressure Range | 0.15 MPa~0.6 MPa |
| Heating Power Rating | 1200 W (110 V) / 1500 W (220 V) |
| Heating Capacity | Single continuous dispensing (≈4 L) at 90°C+, 18 L/h, ≈ 120 cups/h (150 ml/cup) |
| Heating Unit Adjustable Temperature Range | 45℃~98℃ |
| Heating Unit High-pressure Relief Port | Yes |
| Heating Unit Inlet/Outlet Water Pipe Connection | ¼" PE |
| Heating Unit Communication Interface | Shares with chilling unit and faucet |
| Heating Unit UV Sterilization | External |
| Heating Unit Dry Burn Protection | Yes |
| Heating Unit Anti-scald | Yes |
| RO Filtration Unit | No |
| Hole Size for Tap | Φ32~35 mm |
| Drip Tray Hole Size for Tap | Hole Size Φ130 mm，3×Φ8 mm |
| Max Counter Thickness for Tap | ≤40 mm (customizable to extra thickness) |
| Minimum Base Cabinet Size for Units (W x D x H) | 810x500x630 mm |
| Packing Method |  |
1. Multi-Function Beverage Solution
4-in-1 system provides hot, chilled, sparkling, and ambient water, supporting flexible configurations to meet different market needs.
2. High Performance & Premium Taste
High-capacity output with fine, long-lasting sparkling bubbles ensures fast service and superior drinking experience in peak-demand environments.
3. Smart Control & Hygiene Assurance
OLED display, intelligent temperature control, and UV sterilization ensure precise operation, safe use, and consistently clean water quality.
4. Energy-efficient & Commercial-Ready Design
Energy-saving modes, steam recovery system, and under-counter design reduce operating costs while optimizing space and efficiency.
1. Office Pantry Areas
The Under Counter Sparkling Water Dispenser is ideal for modern office pantry areas where employees need hot, chilled, sparkling, and ambient water during the workday. Its under-counter design keeps the counter clean, while the high-output system supports frequent use in busy office environments.
2. Hotel Breakfast Areas
Hotels can use this dispenser to provide guests with multiple drinking water choices in breakfast zones, lounges, and self-service beverage areas. The Under Counter Sparkling Water Dispenser helps improve the guest experience with stable sparkling water output, hygienic UV sterilization, and a neat built-in installation.
3. Restaurant Beverage Stations
For restaurants, cafés, and quick-service dining spaces, this dispenser supports fast beverage preparation without taking up valuable counter space. It delivers chilled water, sparkling water, hot water, and ambient water from one compact system, helping staff serve customers more efficiently during peak hours.
4. Corporate Meeting Rooms
The Under Counter Sparkling Water Dispenser is suitable for executive lounges, meeting rooms, and reception areas where premium beverage service is important. With intelligent temperature control and fine sparkling bubbles, it offers a professional drinking solution for guests, partners, and internal teams.
5. Commercial Shared Spaces
Shopping centers, coworking spaces, training centers, and public service areas can benefit from this commercial sparkling water system. Its energy-saving modes, optional RO filtration, and high-capacity performance make it a reliable choice for high-demand spaces that require clean, safe, and convenient water access.
